Generic FlexBox layout. More...

#include <aurore/core/box.hpp>

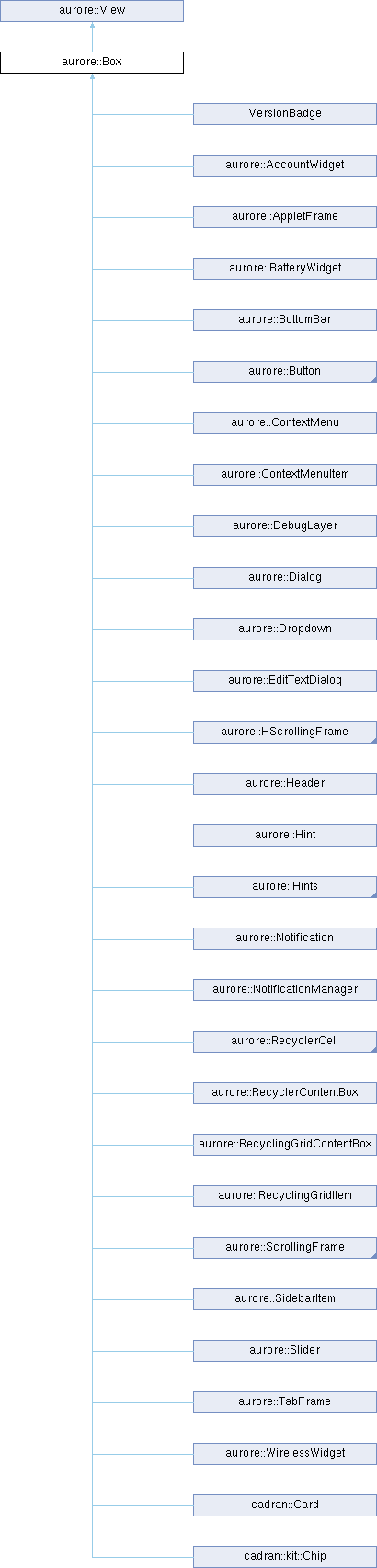

Inheritance diagram for aurore::Box:

Public Member Functions
	Box (Axis flexDirection)
	An empty box laying its children out along `flexDirection`.

	Box ()
	An empty row.

	~Box ()
	Deletes the children (those a ptrLock() holds go to the deletion pool).

void	draw (NVGcontext vg, float x, float y, float width, float height, Style style, FrameContext ctx) override

View *	getDefaultFocus () override

View *	hitTest (Point point) override

View *	getNextFocus (FocusDirection direction, View *currentView) override

void	willAppear (bool resetState) override

void	willDisappear (bool resetState) override

void	onWindowSizeChanged () override

void	onThemeChanged () override

void	onFocusGained () override

void	onFocusLost () override

void	onParentFocusGained (View *focusedView) override

void	onParentFocusLost (View *focusedView) override

bool	applyXMLAttribute (std::string name, std::string value) override

virtual View *	getParentNavigationDecision (View from, View newFocus, FocusDirection direction)

virtual void	addView (View *view)

virtual void	addView (View *view, size_t position)

virtual void	removeView (View *view, bool free=true)

virtual void	clearViews (bool free=true)

virtual void	setPadding (float padding)

virtual void	setPadding (float top, float right, float bottom, float left)

virtual void	setPaddingTop (float top)

float	getPaddingTop ()

virtual void	setPaddingRight (float right)

float	getPaddingRight ()

virtual void	setPaddingBottom (float bottom)

float	getPaddingBottom ()

virtual void	setPaddingLeft (float left)

float	getPaddingLeft ()

virtual void	setGap (float gap)

float	getGap ()

void	setRowGap (float gap)

float	getRowGap ()

void	setColumnGap (float gap)

float	getColumnGap ()

void	setJustifyContent (JustifyContent justify)

void	setAlignItems (AlignItems alignment)

void	setDirection (Direction direction)

void	setAxis (Axis axis)
	The axis the children are laid out along.

Axis	getAxis () const

void	setWrap (Wrap wrap)

Wrap	getWrap () const

std::vector< View * > &	getChildren ()
	The children, in order. The box owns them: it deletes them with itself.

virtual void	getCullingBounds (float top, float right, float bottom, float left)

void	forwardXMLAttribute (std::string attributeName, View *target)

void	forwardXMLAttribute (std::string attributeName, View *target, std::string targetAttributeName)

virtual void	onChildFocusGained (View directChild, View focusedView)

virtual void	onChildFocusLost (View directChild, View focusedView)

View *	getView (std::string id) override

void	setLastFocusedView (View *view)
	The child the focus goes back to when the box gets it again.

void	setDefaultFocusedIndex (int index)
	The child that takes the focus first (negative values are ignored).

size_t	getDefaultFocusedIndex () const

View *	getLastFocusedView () const
	See setLastFocusedView().

virtual bool	isChildFocused ()
	Whether the focus is on one of the children, at any depth.

Public Member Functions inherited from aurore::View
void	setScale (float scale)

void	setScaleX (float scale)

void	setScaleY (float scale)

float	getScaleX () const

float	getScaleY () const

	View ()

virtual	~View ()

void	setBackground (ViewBackground background)
	How the view's background is drawn: none, the sidebar's, the backdrop, a plain colour or a gradient.

void	setBackgroundLinearGradient (NVGcolor start, NVGcolor end, ViewBackground direction=ViewBackground::VERTICAL_LINEAR)

void	shakeHighlight (FocusDirection direction)
	Shakes the focus highlight towards `direction`: there is nothing to go to there.

Rect	getFrame ()
	The view's position and size on the screen, after layout (getX(), getY(), getWidth(), getHeight()).

float	getX ()
	The position on the screen, in layout units: the parents' positions and translations added.

float	getY ()

Rect	getLocalFrame ()
	The position and size in the parent, as laid out by Yoga.

float	getLocalX ()

float	getLocalY ()

float	getWidth ()
	The size as laid out by Yoga; the height without the collapse when `includeCollapse` is false.

float	getHeight (bool includeCollapse=true)

virtual void	invalidate ()

virtual void	onLayout ()

void	setWidth (float width)

void	setHeight (float height)

void	setSize (Size size)

void	setDimensions (float width, float height)

void	setWidthPercentage (float percentage)

void	setHeightPercentage (float percentage)

void	setMinWidth (float minWidth)

void	setMinHeight (float minHeight)

void	setMinWidthPercentage (float percentage)

void	setMinHeightPercentage (float percentage)

void	setMaxWidth (float maxWidth)

void	setMaxHeight (float maxHeight)

void	setMaxWidthPercentage (float percentage)

void	setMaxHeightPercentage (float percentage)

void	setGrow (float grow)

void	setShrink (float shrink)

void	setMargins (float top, float right, float bottom, float left)

void	setMarginTop (float top)

void	setMarginRight (float right)

float	getMarginRight ()

float	getMarginLeft ()

void	setMarginBottom (float right)

void	setMarginLeft (float left)

void	setVisibility (Visibility visibility)

Visibility	getVisibility ()

void	setPositionTop (float pos)

void	setPositionRight (float pos)

void	setPositionBottom (float pos)

void	setPositionLeft (float pos)

void	setPositionTopPercentage (float percentage)

void	setPositionRightPercentage (float percentage)

void	setPositionBottomPercentage (float percentage)

void	setPositionLeftPercentage (float percentage)

void	setPositionType (PositionType type)

void	setId (std::string id)

const std::string &	getId () const

void	setAlignSelf (AlignSelf align)

void	setBoxSizing (BoxSizing sizing)

void	setLineColor (NVGcolor color)

void	setLineTop (float thickness)

void	setLineRight (float thickness)

void	setLineBottom (float thickness)

void	setLineLeft (float thickness)

void	setBackgroundColor (NVGcolor color)

void	setBorderColor (NVGcolor color)

ViewBackground	getBackground () const

NVGcolor	getBackgroundColor () const

NVGcolor	getBorderColor () const

void	setBorderThickness (float thickness)

float	getBorderThickness ()

void	setCornerRadius (float radius)

void	setCornerRadius (float topLeft, float topRight, float bottomRight, float bottomLeft)

float	getCornerRadius ()

void	setThemeArea (ThemeArea area)

ThemeArea	getThemeArea () const

void	setShadowType (ShadowType type)

void	setShadowVisibility (bool visible)

void	setHideHighlightBackground (bool hide)

void	setHideHighlightBorder (bool hide)

void	setHideHighlight (bool hide)

void	setHideClickAnimation (bool hide)
	No click animation when the view is clicked.

void	setHighlightPadding (float padding)

void	setHighlightCornerRadius (float radius)

virtual View *	getNearestView (std::string id)

virtual void	applyXMLAttributes (tinyxml2::XMLElement *element)

void	registerAutoXMLAttribute (std::string name, AutoAttributeHandler handler)

void	registerPercentageXMLAttribute (std::string name, FloatAttributeHandler handler)

void	registerFloatXMLAttribute (std::string name, FloatAttributeHandler handler)

void	registerStringXMLAttribute (std::string name, StringAttributeHandler handler)

void	registerColorXMLAttribute (std::string name, ColorAttributeHandler handler)

void	registerBoolXMLAttribute (std::string name, BoolAttributeHandler handler)

void	registerFilePathXMLAttribute (std::string name, FilePathAttributeHandler handler)

bool	isXMLAttributeValid (std::string attributeName)

void	setMaximumAllowedXMLElements (unsigned max)

unsigned	getMaximumAllowedXMLElements ()

void	setInFadeAnimation (bool translucent)

void	setFocusable (bool focusable)

bool	isFocusable ()
	Whether the view takes the focus: focusable, and visible.

void	removeFromSuperView (bool free=true)

void	setFocusSound (enum Sound sound)

virtual enum Sound	getFocusSound ()

void	detach ()

bool	isDetached ()
	See detach().

void	setDetachedPosition (float x, float y)

void	setDetachedPositionX (float x)

void	setDetachedPositionY (float y)

Point	getDetachedPosition () const

void	setParent (Box parent, void parentUserdata=nullptr)
	The box this view is in (Box::addView sets it; `parentUserdata` is the box's own).

Box *	getParent ()

bool	hasParent ()

void *	getParentUserData ()

template<class ButtonType >
ActionIterator	getAction (ButtonType button)

ActionIterator	getAction (ActionIdentifier identifier)
	The action registered under `identifier`, or getActions().end().

template<class ButtonType , class ActionType >
ActionIdentifier	registerAction (const std::string &hintText, ButtonType button, const ActionListener &actionListener, bool hidden=false, bool allowRepeating=false, enum Sound sound=SOUND_NONE)

ActionIdentifier	registerAction (const std::string &hintText, ControllerButton button, const ActionListener &actionListener, bool hidden=false, bool allowRepeating=false, enum Sound sound=SOUND_NONE)
	The same, on a controller button.

ActionIdentifier	registerAction (AuroreKeyCombination key, const ActionListener &actionListener, bool allowRepeating=false)
	An action on a keyboard key (a combination with modifiers): no hint, no sound.

void	func (AuroreKeyCombination key)

void	unregisterAction (ActionIdentifier identifier)

void	registerClickAction (const ActionListener &actionListener)

void	updateActionHint (enum ControllerButton button, const std::string &hintText)
	Changes the hint of the action on `button`.

void	setActionAvailable (enum ControllerButton button, bool available)
	Turns the action on `button` on or off (an action off runs nothing and shows no hint).

void	setActionsAvailable (bool available) const
	The same for every action of the view.

void	setActionHidden (enum ControllerButton button, bool hidden)

void	resetClickAnimation ()

void	playClickAnimation (bool reverse=false, bool animateBack=true, bool force=false)
	Plays the click animation (the flash over the view).

std::string	getClassString () const
	The view's class name ("Label", "Box"…).

std::string	describe () const
	The class name and the id, for logs: `Label (id="title")`.

YGNode *	getYGNode ()
	The view's Yoga node.

const std::vector< std::shared_ptr< Action > > &	getActions ()
	The actions registered on the view.

const std::vector< GestureRecognizer * > &	getGestureRecognizers ()

void	interruptGestures (bool onlyIfUnsureState)

void	addGestureRecognizer (GestureRecognizer *recognizer)

bool	removeGestureRecognizer (GestureRecognizer *recognizer)

Sound	gestureRecognizerRequest (TouchState touch, MouseState mouse, View *firstResponder)

virtual void	frame (FrameContext *ctx)

void	frameHighlight (FrameContext *ctx)

virtual void	onShowAnimationEnd ()

virtual void	show (std::function< void(void)> cb)

virtual void	show (std::function< void(void)> cb, bool animate, float animationDuration)

virtual float	getShowAnimationDuration (TransitionAnimation animation)

void	collapse (bool animated=true)

bool	isCollapsed ()
	Whether collapse() hid the view.

void	setAlpha (float alpha)
	The view's opacity, 0 to 1 (a transition when its style has one).

void	expand (bool animated=true)

virtual void	hide (std::function< void(void)> cb)

virtual void	hide (std::function< void(void)> cb, bool animate, float animationDuration)

bool	isHidden ()
	Whether hide() hid the view.

virtual bool	isTranslucent ()

bool	isFocused ()
	Whether the view has the focus.

void	setCustomNavigationRoute (FocusDirection direction, View *target)

void	setCustomNavigationRoute (FocusDirection direction, std::string targetId)

bool	hasCustomNavigationRouteByPtr (FocusDirection direction)

bool	hasCustomNavigationRouteById (FocusDirection direction)

View *	getCustomNavigationRoutePtr (FocusDirection direction)

std::string	getCustomNavigationRouteId (FocusDirection direction)

GenericEvent *	getFocusEvent ()
	Fired with the view when it gains the focus.

GenericEvent *	getFocusLostEvent ()
	Fired with the view when it loses the focus.

virtual float	getAlpha (bool child=false)
	The opacity drawn: the view's alpha times its parents'.

float	getClickAlpha ()

void	overrideTheme (Theme *newTheme)

void	setCulled (bool culled)

bool	isCulled ()

void	setAspectRatio (float value)
	The width over the height, kept by the layout (values <= 0 are ignored).

float	getAspectRatio ()

void	setBackgroundCornerRadii (float topLeft, float topRight, float bottomRight, float bottomLeft)

void	setTranslationY (float translateY)

void	setTranslationX (float translateX)

void	setWireframeEnabled (bool wireframe)

bool	isWireframeEnabled ()

AppletFrameItem *	getAppletFrameItem ()

void	updateAppletFrameItem ()

bool	getClipsToBounds () const
	Whether the children are clipped to the view's frame when drawn.

void	setClipsToBounds (bool value)

virtual AppletFrame *	getAppletFrame ()
	The AppletFrame the view is in, or nullptr.

void	present (View *view)
	Pushes `view` as the content of the view's AppletFrame (a page inside the frame).

virtual void	dismiss (std::function< void(void)> cb=[] {})
	Pops the AppletFrame's content back to the one before, then runs `cb`.

std::weak_ptr< void >	aliveToken ()

void	ptrLock ()

void	ptrUnlock ()

bool	isPtrLocked ()
	Whether a ptrLock() holds the view.

void	freeView ()
	Deletes the view at the end of the frame (Application::addToFreeQueue).

Activity *	getParentActivity ()
	The activity the view is in, through its parents; nullptr when none.

void	setParentActivity (Activity *activity)

bool	setStateStyle (StyleState state, const std::string &property, const std::string &value)

void	setStyleState (StyleState state, bool on)

bool	hasStyleState (StyleState state)

bool	setTransition (const std::string &spec)

virtual bool	getStyleProperty (const std::string &name, StyleValue *value)

virtual bool	setStyleProperty (const std::string &name, const StyleValue &value)

void	keepSubscription (Subscription &&subscription)

bool	bind (const std::string &spec)

virtual bool	setBoundText (const std::string &text)

void	setAccessibilityRole (AccessibilityRole role)

AccessibilityRole	getAccessibilityRole ()
	See setAccessibilityRole().

void	setAccessibilityLabel (const std::string &label)

std::string	getAccessibilityLabel ()

void	setAccessibilityValue (const std::string &value)

std::string	getAccessibilityValue ()

void	setAccessibilitySelected (bool selected)

bool	isAccessibilitySelected ()

virtual bool	getAccessibilityPosition (int index, int count)

virtual std::string	getAccessibilityDescription ()

std::string	getAccessibilityText ()

void	announceAccessibilityValue ()

void	resolveBindings (Activity *activity=nullptr)

virtual void	onTextScaleChanged ()

bool	setThemeColor (const std::string &property, const std::string &key)

std::string	getThemeColor (const std::string &property)

Static Public Member Functions
static View *	create ()

Static Public Member Functions inherited from aurore::View
static void	setHighlightGlide (bool glide)

static View *	createFromXMLString (std::string_view xml)

static View *	createFromXMLElement (tinyxml2::XMLElement *element)

static View *	createFromXMLFile (std::string path)

static View *	createFromXMLResource (std::string name)

static std::shared_ptr< tinyxml2::XMLDocument >	getXMLCache (std::string_view path)

static void	forgetXMLCache (const std::string &path)

static std::string	describeXMLError (tinyxml2::XMLDocument *document, const std::string &source="")

static std::string	describeXMLLocation (const tinyxml2::XMLElement *element)

static void	fatalXML (const std::string &message)

static std::string	closestXMLName (const std::string &name, const std::vector< std::string > &known)

template<typename T >
static std::string	listXMLValues (const std::unordered_map< std::string, T > &values)
	An enumeration's values, sorted, for an error message.

static std::string	getStringXMLAttributeValue (std::string value)

static std::string	getFilePathXMLAttributeValue (std::string value)

Protected Member Functions
std::string	getDefaultAccessibilityLabel () override
	A focusable box says the texts shown in it (getAccessibilityText).

void	inflateFromXMLString (std::string_view xml)

void	inflateFromXMLElement (tinyxml2::XMLElement *element)

void	inflateFromXMLRes (const std::string &res)

void	inflateFromXMLFile (const std::string &path)

void	handleXMLElement (tinyxml2::XMLElement *element) override

Protected Member Functions inherited from aurore::View
NVGcolor	a (NVGcolor color)
	Helper functions to apply this view's alpha to a color.

NVGpaint	a (NVGpaint paint)

NVGcolor	RGB (unsigned r, unsigned g, unsigned b)

NVGcolor	RGBA (unsigned r, unsigned g, unsigned b, unsigned a)

NVGcolor	RGBf (float r, float g, float b)

NVGcolor	RGBAf (float r, float g, float b, float a)

NVGcolor	shadowColor (NVGcolor color, float opacity)

virtual bool	animateHint ()

virtual AccessibilityRole	getDefaultAccessibilityRole ()

virtual std::string	getDefaultAccessibilityValue ()

virtual bool	getDefaultAccessibilitySelected ()

bool	transitionStyle (const char *name, const StyleValue &to)

Additional Inherited Members
Public Types inherited from aurore::View
typedef std::vector< std::shared_ptr< Action > >::iterator	ActionIterator

Public Attributes inherited from aurore::View
Animatable	alpha = 1.0f

Static Public Attributes inherited from aurore::View
static constexpr float	AUTO = NAN
	A size or position left to the layout (`auto` in XML).

static std::string	CUSTOM_RESOURCES_PATH

static std::string	currentXMLResource

Protected Attributes inherited from aurore::View
Animatable	collapseState = 1.0f

bool	focused = false

Activity *	parentActivity = nullptr

Box *	parent = nullptr

GenericEvent	focusEvent

GenericEvent	focusLostEvent

YGNode *	ygNode

std::string	id = ""

Detailed Description

Generic FlexBox layout.

Constructor & Destructor Documentation

◆ Box() [1/2]

aurore::Box::Box ( Axis flexDirection )

An empty box laying its children out along flexDirection.

◆ Box() [2/2]

aurore::Box::Box ( )

An empty row.

◆ ~Box()

aurore::Box::~Box ( )

Deletes the children (those a ptrLock() holds go to the deletion pool).

Member Function Documentation

◆ addView() [1/2]

virtual void aurore::Box::addView ( View * view )

virtual

Adds a view to this Box. Returns the position the view was added at.

Reimplemented in aurore::HScrollingFrame, and aurore::ScrollingFrame.

◆ addView() [2/2]

virtual void aurore::Box::addView	(	View *	view,
		size_t	position
	)

virtual

Adds a view to this Box at the given position. Returns the position the view was added at.

◆ applyXMLAttribute()

bool aurore::Box::applyXMLAttribute	(	std::string	name,
		std::string	value
	)

overridevirtual

Applies the given attribute to the view.

You can add your own attributes to by calling registerXMLAttribute() in the view constructor.

Reimplemented from aurore::View.

Reimplemented in aurore::IconButton.

◆ clearViews()

virtual void aurore::Box::clearViews ( bool free = true )

virtual

Removes all views from the Box. Them will be freed.

◆ create()

static View * aurore::Box::create ( )

static

◆ draw()

void aurore::Box::draw	(	NVGcontext *	vg,
		float	x,
		float	y,
		float	width,
		float	height,
		Style	style,
		FrameContext *	ctx
	)

overridevirtual

Called by frame() to draw the view onscreen. Views should not draw outside of their bounds (they may be clipped if they do so).

Implements aurore::View.

Reimplemented in cadran::Card, FooterHints, ScrollView, aurore::ContextMenu, aurore::HScrollingFrame, aurore::IconButton, aurore::RecyclerFrame, aurore::RecyclingGrid, aurore::HRecyclerFrame, aurore::ScrollingFrame, aurore::Slider, and aurore::WirelessWidget.

◆ forwardXMLAttribute() [1/2]

void aurore::Box::forwardXMLAttribute	(	std::string	attributeName,
		View *	target
	)

Registers an XML attribute to be forwarded to the given view. Works regardless of the target attribute type. Useful to expose attributes of children views in the parent box without copy pasting them individually.

The forwarded attribute value will override the value of the regular attribute if it already exists in the target view.

◆ forwardXMLAttribute() [2/2]

void aurore::Box::forwardXMLAttribute	(	std::string	attributeName,
		View *	target,
		std::string	targetAttributeName
	)

Registers an XML attribute to be forwarded to the given view, while changing the target attribute name. Works regardless of the target attribute type. Useful to expose attributes of children views in the parent box without copy pasting them individually, but with a different name.

The forwarded attribute value will override the value of the regular attribute if it already exists in the target view.

◆ getAxis()

Axis aurore::Box::getAxis ( ) const

◆ getChildren()

std::vector< View * > & aurore::Box::getChildren ( )

The children, in order. The box owns them: it deletes them with itself.

◆ getColumnGap()

float aurore::Box::getColumnGap ( )

◆ getCullingBounds()

virtual void aurore::Box::getCullingBounds	(	float *	top,
		float *	right,
		float *	bottom,
		float *	left
	)

virtual

Returns the bounds used for culling children.

◆ getDefaultAccessibilityLabel()

std::string aurore::Box::getDefaultAccessibilityLabel ( )

overrideprotectedvirtual

A focusable box says the texts shown in it (getAccessibilityText).

Reimplemented from aurore::View.

Reimplemented in aurore::Button, aurore::DetailCell, aurore::RadioCell, aurore::Dialog, aurore::Dropdown, aurore::SidebarItem, and aurore::Slider.

◆ getDefaultFocus()

View * aurore::Box::getDefaultFocus ( )

overridevirtual

Returns the default view to focus when focusing this view Typically the view itself or one of its children.

Returning nullptr means that the view is not focusable (and neither are its children)

By default, a view is focusable if the flag is set to true with setFocusable() and if the view is visible.

When pressing a key, the flow is :

starting from the currently focused view's parent, traverse the tree upwards and repeatedly call getNextFocus() on every view until we find a next view to focus or meet the end of the tree
if a view is found, getNextFocus() will internally call getDefaultFocus() for the selected child
give focus to the result, if it exists

Reimplemented from aurore::View.

Reimplemented in ScrollView, aurore::SliderCell, aurore::ContextMenu, aurore::HScrollingFrame, aurore::RecyclingGrid, aurore::HRecyclerFrame, aurore::ScrollingFrame, and aurore::Slider.

◆ getDefaultFocusedIndex()

size_t aurore::Box::getDefaultFocusedIndex ( ) const

◆ getGap()

float aurore::Box::getGap ( )

Returns the current gap between child elements inside this view.

◆ getLastFocusedView()

View * aurore::Box::getLastFocusedView ( ) const

See setLastFocusedView().

◆ getNextFocus()

View * aurore::Box::getNextFocus	(	FocusDirection	direction,
		View *	currentView
	)

overridevirtual

Returns the next view to focus given the requested direction and the currently focused view (as parent user data)

Returning nullptr means that there is no next view to focus in that direction - getNextFocus will then be called on our parent if any

Reimplemented from aurore::View.

Reimplemented in ScrollView, aurore::HScrollingFrame, aurore::RecyclerContentBox, aurore::RecyclingGridContentBox, and aurore::ScrollingFrame.

◆ getPaddingBottom()

float aurore::Box::getPaddingBottom ( )

◆ getPaddingLeft()

float aurore::Box::getPaddingLeft ( )

◆ getPaddingRight()

float aurore::Box::getPaddingRight ( )

◆ getPaddingTop()

float aurore::Box::getPaddingTop ( )

◆ getParentNavigationDecision()

virtual View * aurore::Box::getParentNavigationDecision	(	View *	from,
		View *	newFocus,
		FocusDirection	direction
	)

virtual

The focus about to move from from to newFocus: a box may give another view instead. Asked of every parent up the tree; returns newFocus by default.

Reimplemented in aurore::Dropdown, aurore::HScrollingFrame, and aurore::ScrollingFrame.

◆ getRowGap()

float aurore::Box::getRowGap ( )

◆ getView()

View * aurore::Box::getView ( std::string id )

overridevirtual

Returns the view with the corresponding id in the view or its children, or nullptr if it hasn't been found.

Research is done recursively by traversing the tree starting from this view. This view's parents are not traversed.

Reimplemented from aurore::View.

◆ getWrap()

Wrap aurore::Box::getWrap ( ) const

Returns the wrapping behavior for the children inside this view.

◆ handleXMLElement()

void aurore::Box::handleXMLElement ( tinyxml2::XMLElement * element )

overrideprotectedvirtual

Handles a child XML element.

By default, calls createFromXMLElement() and adds the result to the children of the Box.

Reimplemented from aurore::View.

Reimplemented in aurore::TabFrame.

◆ hitTest()

View * aurore::Box::hitTest ( Point point )

overridevirtual

Returns the view to focus with the corresponding screen coordinates in the view or its children, or nullptr if it hasn't been found.

Research is done recursively by traversing the tree starting from this view. This view's parents are not traversed.

Reimplemented from aurore::View.

◆ inflateFromXMLElement()

void aurore::Box::inflateFromXMLElement ( tinyxml2::XMLElement * element )

protected

Inflates the Box with the given XML element.

The root element MUST be a aurore::Box, corresponding to the inflated Box itself. Its attributes will be applied to the Box.

Each child node in the root aurore::Box will be treated as a view and added as a child of the Box.

◆ inflateFromXMLFile()

void aurore::Box::inflateFromXMLFile ( const std::string & path )

protected

Inflates the Box with the given XML file path.

The root element MUST be a aurore::Box, corresponding to the inflated Box itself. Its attributes will be applied to the Box.

Each child node in the root aurore::Box will be treated as a view and added as a child of the Box.

◆ inflateFromXMLRes()

void aurore::Box::inflateFromXMLRes ( const std::string & res )

protected

Inflates the Box with the given XML resource.

The root element MUST be a aurore::Box, corresponding to the inflated Box itself. Its attributes will be applied to the Box.

Each child node in the root aurore::Box will be treated as a view and added as a child of the Box.

◆ inflateFromXMLString()

void aurore::Box::inflateFromXMLString ( std::string_view xml )

protected

Inflates the Box with the given XML string.

The root element MUST be a aurore::Box, corresponding to the inflated Box itself. Its attributes will be applied to the Box.

Each child node in the root aurore::Box will be treated as a view and added as a child of the Box.

◆ isChildFocused()

virtual bool aurore::Box::isChildFocused ( )

virtual

Whether the focus is on one of the children, at any depth.

◆ onChildFocusGained()

virtual void aurore::Box::onChildFocusGained	(	View *	directChild,
		View *	focusedView
	)

virtual

Fired when focus is gained on one of this view's children, or one of the children of the children...

directChild is guaranteed to be one of your children. It may not be the view that has been focused.

If focusedView == directChild, then the child of yours has been focused. Otherwise, focusedView is a child of directChild.

Reimplemented in ScrollView, aurore::HScrollingFrame, and aurore::ScrollingFrame.

◆ onChildFocusLost()

virtual void aurore::Box::onChildFocusLost	(	View *	directChild,
		View *	focusedView
	)

virtual

Fired when focus is lost on one of this view's children. Works similarly to onChildFocusGained().

Reimplemented in aurore::HScrollingFrame, and aurore::ScrollingFrame.

◆ onFocusGained()

void aurore::Box::onFocusGained ( )

overridevirtual

Fired when focus is gained.

Reimplemented from aurore::View.

Reimplemented in aurore::Button, aurore::HScrollingFrame, aurore::RecyclerCell, aurore::ScrollingFrame, and aurore::SidebarItem.

◆ onFocusLost()

void aurore::Box::onFocusLost ( )

overridevirtual

Fired when focus is lost.

Reimplemented from aurore::View.

Reimplemented in ScrollView, aurore::Button, aurore::RecyclerCell, and aurore::SidebarItem.

◆ onParentFocusGained()

void aurore::Box::onParentFocusGained ( View * focusedView )

overridevirtual

Fired when focus is gained on this view's parent, or the parent of the parent...

Reimplemented from aurore::View.

◆ onParentFocusLost()

void aurore::Box::onParentFocusLost ( View * focusedView )

overridevirtual

Fired when focus is lost on one of this view's parents. Works similarly to onParentFocusGained().

Reimplemented from aurore::View.

◆ onThemeChanged()

void aurore::Box::onThemeChanged ( )

overridevirtual

Called on every view of the screens when the theme changes (Application::getThemeChangedEvent): the colours given by key (setThemeColor) take their new values, the state styles read their "@theme/" values again. A view that keeps other colours of its own looks them up again here, then calls the base. A Box goes on to its children.

Reimplemented from aurore::View.

Reimplemented in aurore::ContextMenu, aurore::RecyclerFrame, aurore::RecyclingGrid, and aurore::HRecyclerFrame.

◆ onWindowSizeChanged()

void aurore::Box::onWindowSizeChanged ( )

overridevirtual

Fired when the window size changes, after updating layout.

Reimplemented from aurore::View.

◆ removeView()

virtual void aurore::Box::removeView	(	View *	view,
		bool	free = `true`
	)

virtual

Removes the given view from the Box. It will be freed.

Reimplemented in aurore::HScrollingFrame, and aurore::ScrollingFrame.

◆ setAlignItems()

void aurore::Box::setAlignItems ( AlignItems alignment )

Sets the children alignment along the Box cross axis.

Default is AUTO.

◆ setAxis()

void aurore::Box::setAxis ( Axis axis )

The axis the children are laid out along.

◆ setColumnGap()

void aurore::Box::setColumnGap ( float gap )

Sets the gap between two children along a row (or between wrapped columns), overriding setGap() on that axis.

◆ setDefaultFocusedIndex()

void aurore::Box::setDefaultFocusedIndex ( int index )

The child that takes the focus first (negative values are ignored).

◆ setDirection()

void aurore::Box::setDirection ( Direction direction )

Sets the direction of the box, aka place the views left to right or right to left (flips the children).

Default is INHERIT.

◆ setGap()

virtual void aurore::Box::setGap ( float gap )

virtual

Sets the gap between child elements inside this view. This is typically used in layouts like grids or lists.

◆ setJustifyContent()

void aurore::Box::setJustifyContent ( JustifyContent justify )

Sets the children alignment along the Box axis.

Default is FLEX_START.

◆ setLastFocusedView()

void aurore::Box::setLastFocusedView ( View * view )

The child the focus goes back to when the box gets it again.
